HANST Booster Valve Mainfolds
3,500 psig), a hydraulically controlled three-way valve, and a booster (0 to 30,000 psig). After integrated, it has small volume and compact structure, effectively reducing the installation space and time and greatly decreasing the labor cost.
Characteristics
1. The body material is 316 stainless steel.
2. Compact structure and small size
3. It can be used normally under temperature conditions of -40¡æ
4. Integrated structure can effectively reduce system leakage points
Parameters
1. Pilot port (PL): 1/4¡±NPT
2. Working medium inlet (IN): 1/4"NPT
3. Working medium outlet (OUT): 4H (1/4" MP female thread interface)
4. Pressure monitoring port (G): 1/4"NPT
5. Working medium outlet (T): 1/4" NPT
6. Pilot pressure: 80 to 100 psig
7. Input pressure: 0 to 3,000psig
8. Output pressure: ¢Ù 0 to 30,000psig ¢Ú 0 to 45,000psig
9. Boost ratio: ¢Ù1:10; ¢Ú1:16
10. Proportional unloading valve pressure setting range: 2,500 psig to 3,500 psig

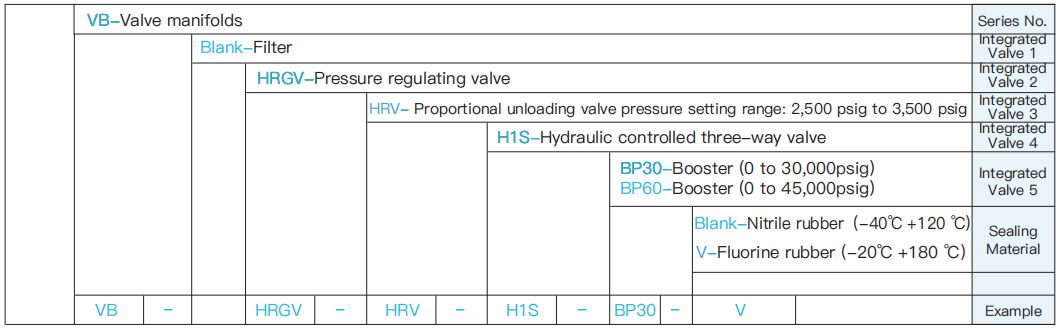

Type Designation
