Characteristics

1. The body material is 316 stainless steel.

2. Compact structure and small size

3. It can be used normally under temperature conditions of -40¡æ

4. Especially suitable for installation in the drawer of the wellhead control panel

Parameters

1. Pilot port (PL): 3/8" NPT female thread

2. Working medium inlet (IN): 4M (1/4" MP female thread interface)

3. Working medium outlet (OUT): 4M (1/4" MP female thread interface)

4. Pressure monitoring port (G): 4M (1/4" MP female thread interface)

5. Working medium outlet 1 (T1): 4M (1/4" MP female thread interface)

6. Working medium outlet 2 (T2): 1/4" MP female thread

7. Pilot pressure: 80 to 100 psig

8. Working temperature: -40¡æ to +180¡æ

9. Relief valve pressure setting range:

5,000 to 10,000psig

10,000 to 15,000psig

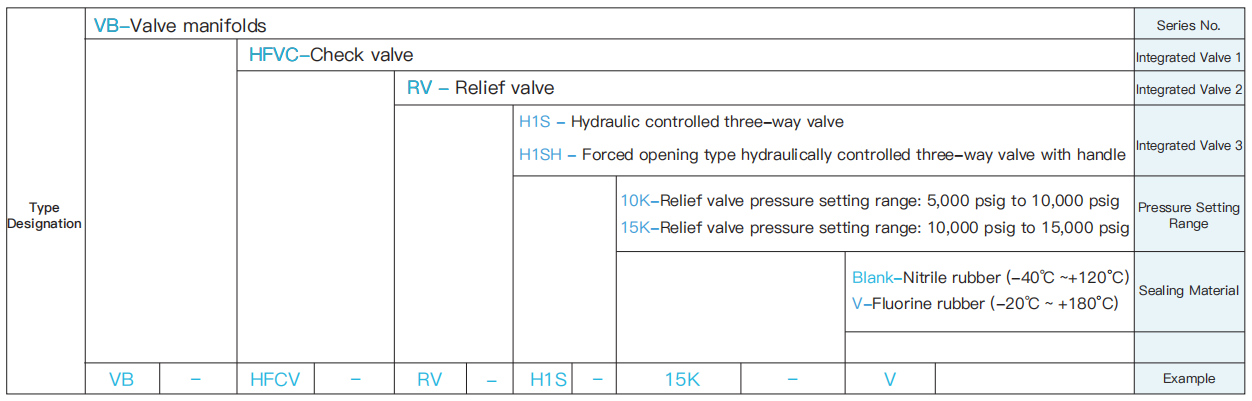

Type Designation
